Digital Teslameters

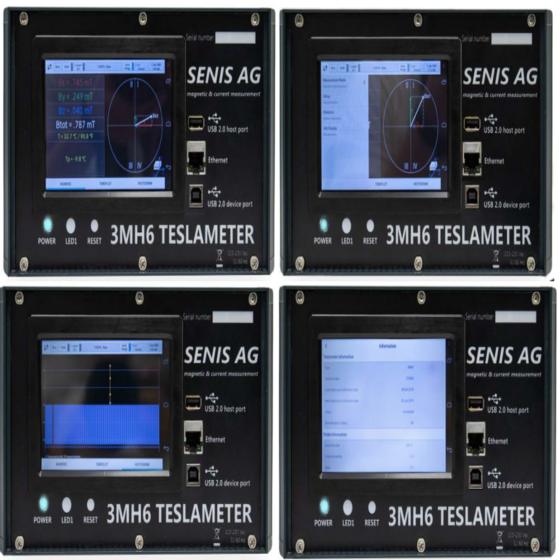

3MH6_Advance 3 Axis Magnetic Field Digital Teslameter

3MH6

. High-precision 3-axis Teslameter (Bx, By, Bz)
. Supports DC and AC magnetic field measurements
. Magnetic field measurement range: 100mT, 500mT, 2T, 20T
. High resolution: less than 1ppm
. DC accuracy: 0.005% (50ppm)
. Bandwidth: DC – 2.5kHz (-3dB)
. Selectable sampling rate: up to 7.5ks/sec
. Temperature and measurement effects: < 20ppm/°C
. 24-bit A/D Converter
. Autoscale, zero, max,min
. Support android GUI display
. RS232/USB channel support
. Visualizing magnetic field vector diagram

Low Noise Teslameter with integrated Hall Probe incorporates a high accuracy magnetic field-toanalog-voltage transducer with a high-level, temperature compensated output signal for each of the three components of the measured magnetic flux density, Bx, By and Bz. A digital module is additionally applied to the analog transducer to form the digital Teslameter. Digital Teslameter provides the possibility of automatic data acquisition via a USB serial interface by a host computer.



>>Datasheet(Download)
