3DACMT-1_3 Axis AC Magnetic Transducer

3DACMT-1

. Frequency range 10kHz - 200kHz
. Magnetic field resolution 1.5μTrms
. Lightweight tiny probe with a volume of 3.6 cm3
. Non-contact measurement
. High linear response
. High sensing accuracy ±1%
. High phase accuracy <3° at 85kHz
. Excellent angular accuracy <±1°
. All three axes have a high degree of concentricity
. High electromagnetic protection ability

Information

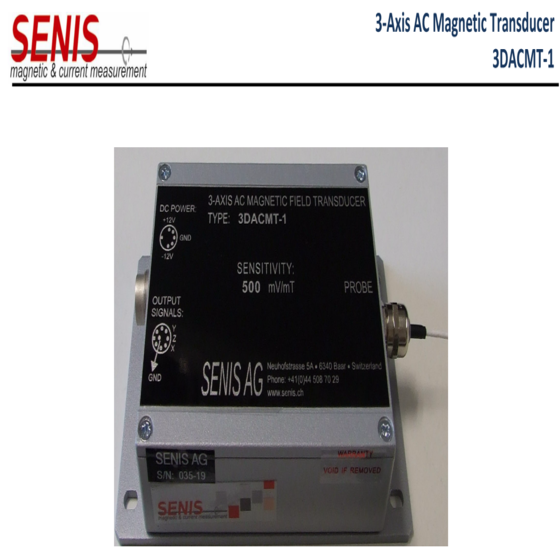

The qrstq 3-Axis AC Magnetic Transducer 3DACMT-1 is a compact instrument to measure all 3 components of alternating magnetic fields with very high resolution in a small volume. The qrstq 3DACMT-1 Transducer is ideally suited to measure and map AC magnetic fields in noisy environments with field resolution better than 1.5µT.

>>Datasheet(Download)
